E-LINE

  • Entry level balancer most suited to mechanical workshops, smaller tyre stores and dealerships
  • Automatic distance and diameter gauge
  • Width value via keypad
  • LED light illumination
  • Laser for stick on wheel weights
  • Foor pedal

TOP LINE

  • Digital wheel balancer equipped with automatic gauge for a correct measurement of distance and diameter
  • Sonar system for automatic detection of rim width and laser line for the correct application of stick-on weights.
  • Equipped with the automatic approach system: automatic wheel stop close to the points of application of correction weights and electric brake to lock the wheel in position.

TOP LINE

  • 17″ touchscreen equipped with automatic gauge for a correct measurement of distance and diameter
  • Sonar system for automatic detection of rim width and laser line and led light for the correct application of stick-on weights.
  • Equipped with the automatic approach system: automatic wheel stop close to the points of application of correction weights and electric brake to lock the wheel in position.

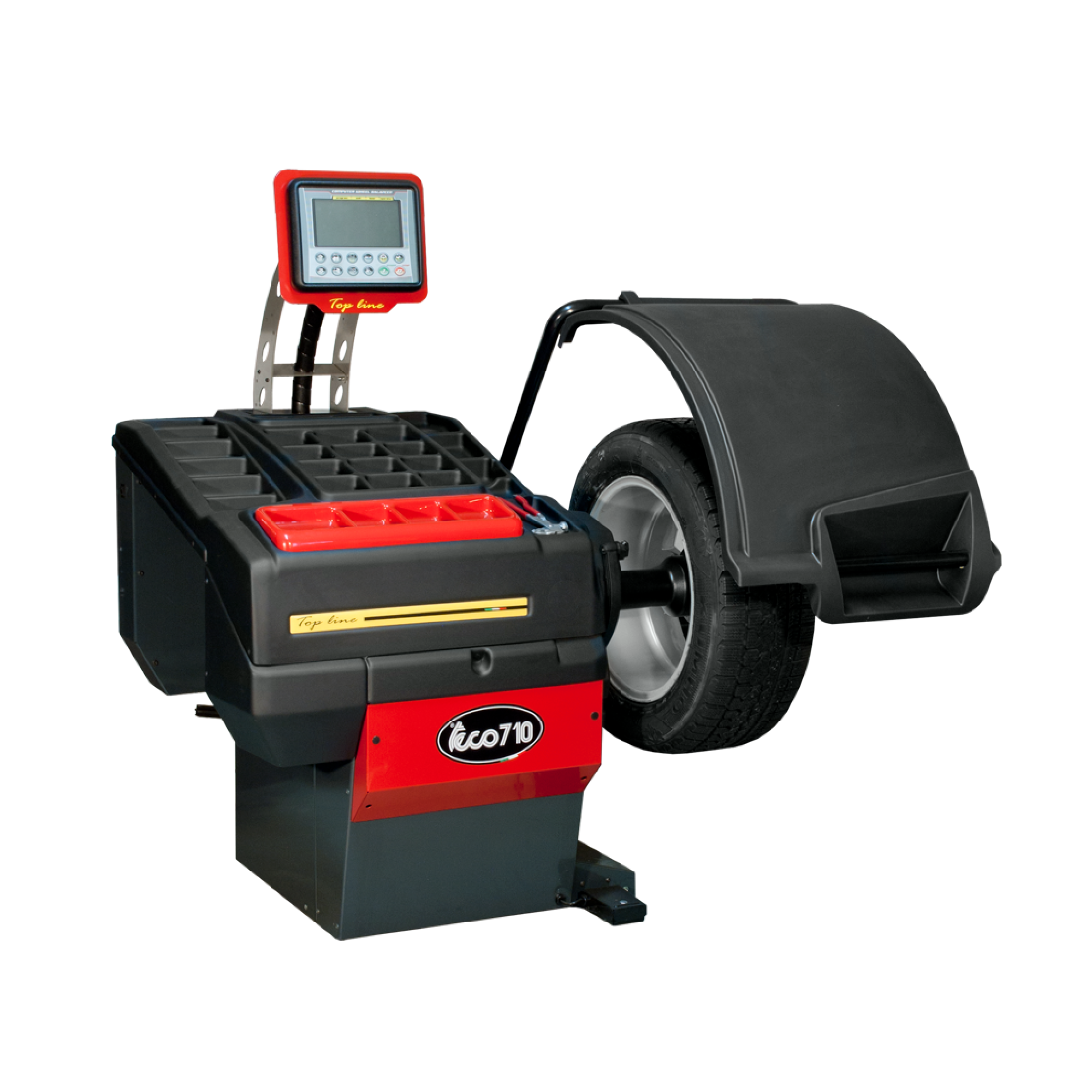

teco 710

TOP LINE PREMIUM

  • Electronic display wheel balancer with save-spacer wheel hood and wide weight tray cover for car, van and motorcycle wheels having maximum weight of 85 Kg and maximum rim diameter measurable with the automatic internal sensor of 28''
  • TECO 710 offers the following technical features: new internal digital gauge for automatic data entry system of distance and rim diameter with automatic selection of balancing programmes, automatic estimation program of wheel width parameter, automatic search of the balancing position, rim illuminator and Laser line system for adhesive weight positioning at 6 o'clock when ALU programs are selected
  • SONAR for width acquisition

Max Rim Diameter

28" (manually settable 35")

Rim Width

1,5

Max Wheel Weight

75 Kg (165 lbs)

Shaft Diameter

40mm (1,6")

Distance Machine-Rim

275 mm (11")

Balancing Speed

75 - 85 - 98 rpm

Balancing Precision

± 1 gr (± 0,05 oz)

Cycle Time

7 sec

Power Supply 1PH/50-60HZ

100 - 115V or 200 - 230V

Net Weight

84 Kg (185 lbs)

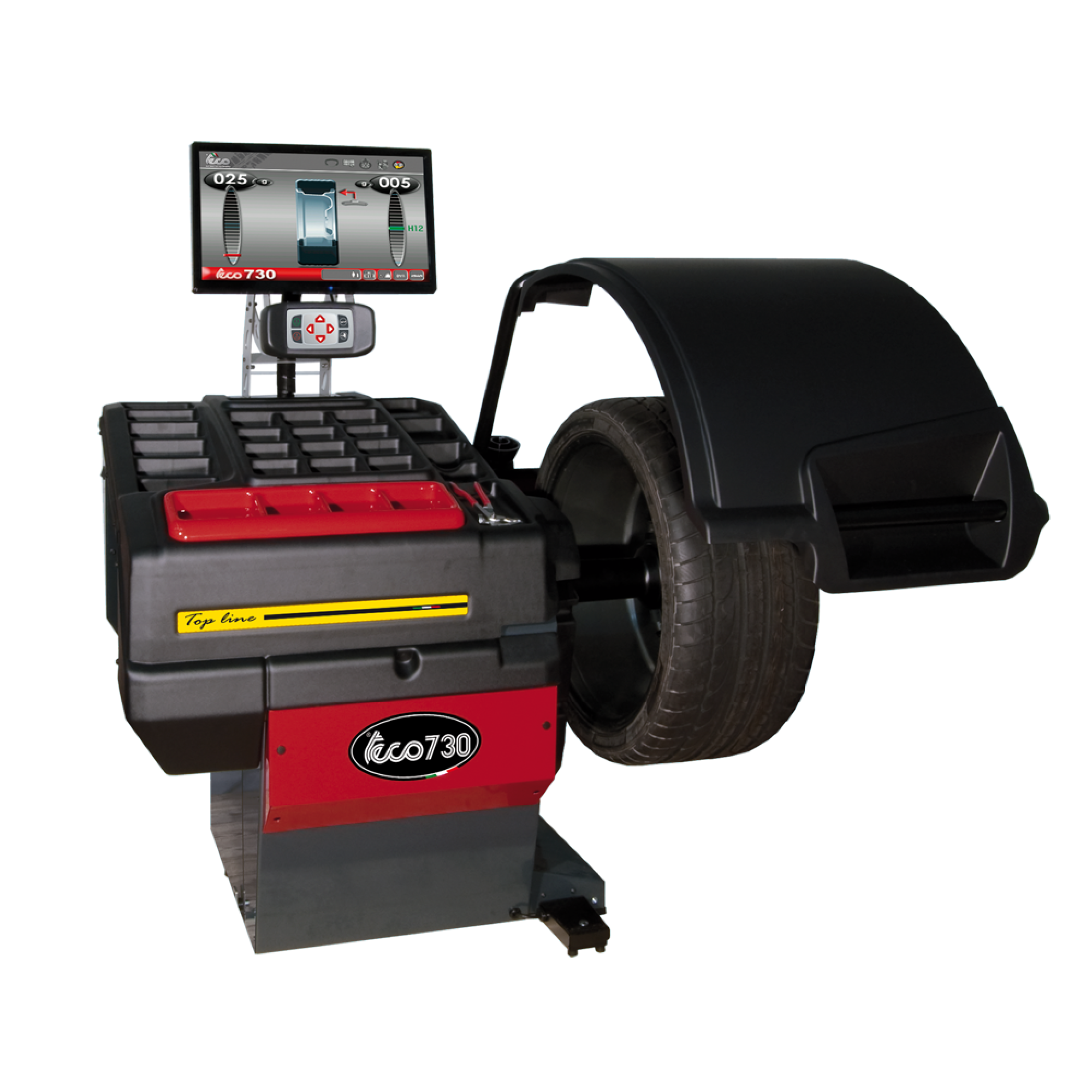

teco 730

TOP LINE PREMIUM

  • ELECTRONIC WHEEL BALANCER with LCD monitor (optional), save-spacer wheel hood and wide weight tray cover, conceived for car, van and, using specific optional accessories, motorcycle wheels having maximum weight of 85 Kg
  • TECO 730 offers the following technical features: new internal digital gauge for automatic data entry system of distance and rim diameter with automatic selection of balancing programmes, automatic estimation program of wheel width parameter, automatic search of the balancing position, rim illuminator and Laser line system for adhesive weight positioning at 6 o'clock when ALU programs are selected
  • SONAR For width acquistion

Max Rim Diameter

28" (manually settable 35")

Rim Width

1,5"-20"

Max Wheel Weight

75 Kg (165 lbs)

Shaft Diameter

40mm (1,6")

Distance Machine-Rim

275 mm (11")

Balancing Speed

75 - 85 - 98 rpm

Balancing Precision

± 1 gr (± 0,05 oz)

Cycle Time

6 sec

Power Supply 1PH/50-60HZ

100/230 V

Net Weight

155 Kg (340 lbs)
