N-550 XL Vehicle Hoist

N-550 XL Hoist

Separate master and slave hydraulic system

The platform has an anti-de-formation structure
Supports a variety of levelling methods

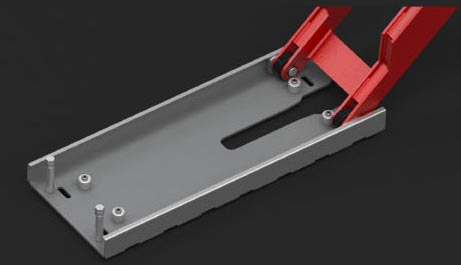

Adjustable support plate design, suitable for all turntable plates

Cylinder

Baseplate

Platform

Friendly design. Various modifications for the two platforms to be even

Enquire Now Call: 0403 577 573

Technical Data

550 / W52 Rolling Jacks	550 / WT52 Lift Table
Main Lift Capacity	5500 kg
Lift Table Capacity	4000 kg
Lifting Time	45 sec
Lowering Time	40 sec
Platform Length	mm / 5200mm
Main Lift Lifting Height	2040mm
Lift Table Lifting Height	480mm
Minimum Height	165mm
Total Width	2220mm

Other Highlights

Lift table with two side extensions, suitable for more vehicles with different wheelhousing

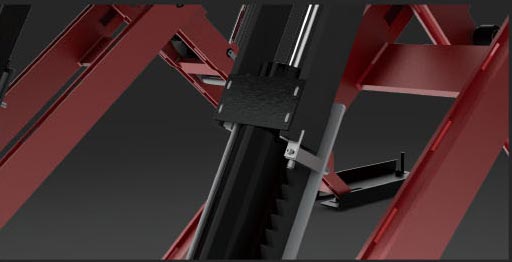

Pneuamtic lock device - easy to use - wear reduction
Unique hydraulic support and lifty. Mutiple patent design
Heavy duty scissor lift
Each lift passses the test of 115% dynamic load and 150% static load. Safe and reliable.
Equipped with product liability insurance globally
Global product liability insurance

Ready for Your Next Hoist?

Make Our NEXT vehicle hoist YOUR NEXT Vehicle Hoist
