N-360 H High Rise Scissor Hoist

Technical Data

Capacity

3600 kg

Lifting Time

40 sec

Lowering Time

40 sec

Motor

38-V 3Kw 3Ph 50Hz-60Hz

Lifting Height

1960mm

Minimum Height

110mm

Total Width

2056mm

Total Weight

760Kg

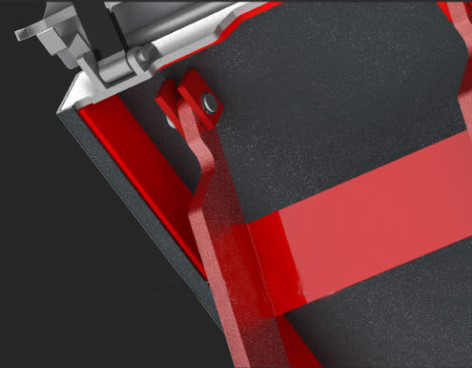

Angle adjustable access ramp enhances the protection of the tyre

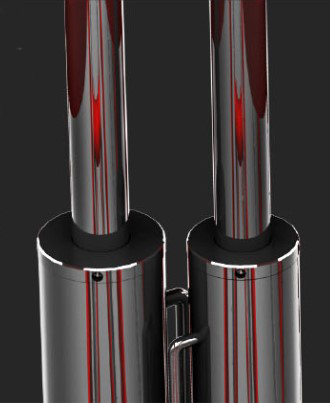

Independent master and slave hydraulic oil line, reinforced structure design, strong and reliable automatic levelling system

Reinforced structure design, strong and reliable

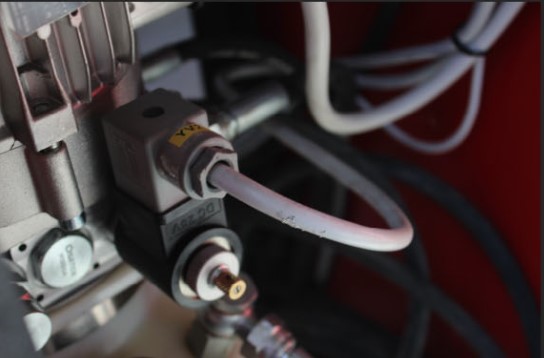

Equipped with emergency release valve

Other Highlights

  • Global technology design patent
  • Each group of master cylinder is equipped with explosion-proof valve to ensure safe use
  • Unique left and right platform integration design, air source and power connection free under platform
  • Two sides drive on, making full use of space
  • Once started, can reach the maximum load immediately
  • Each lift passes the test of 115% dynamic load and 150% static load. Safe and reliable.
  • Lift is equpped with product liability insurance globally
